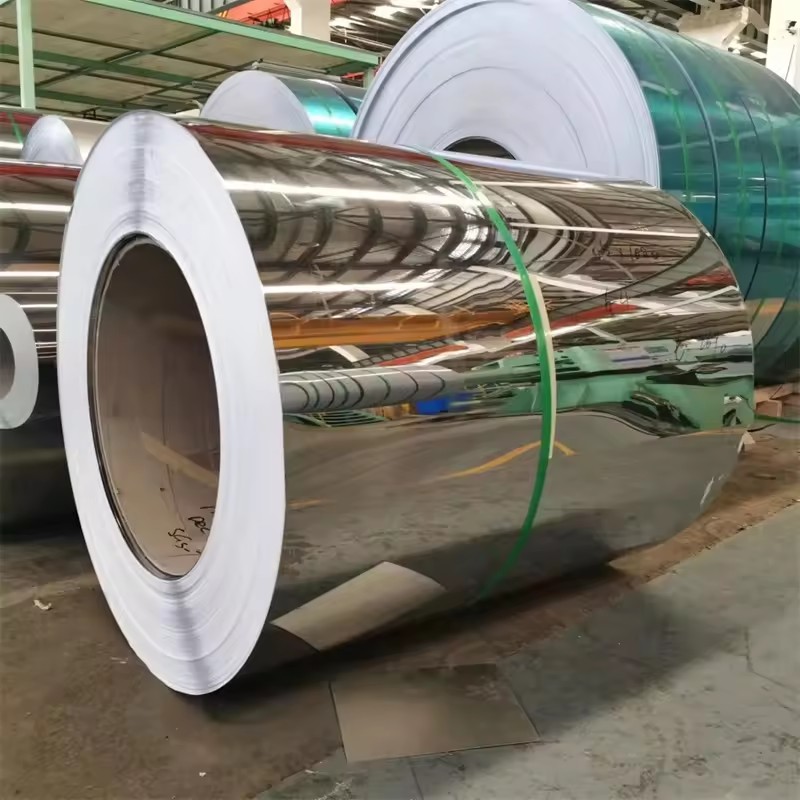

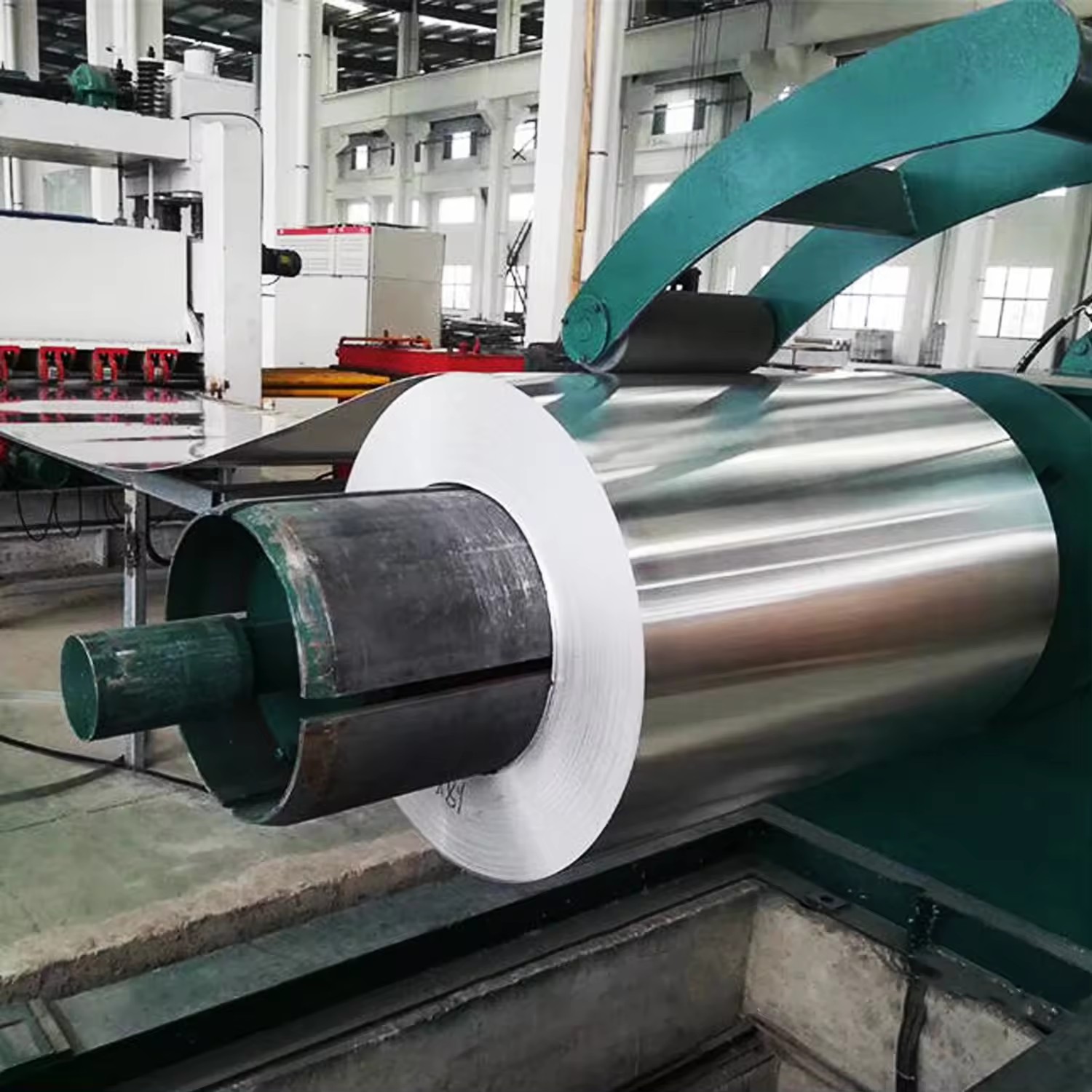

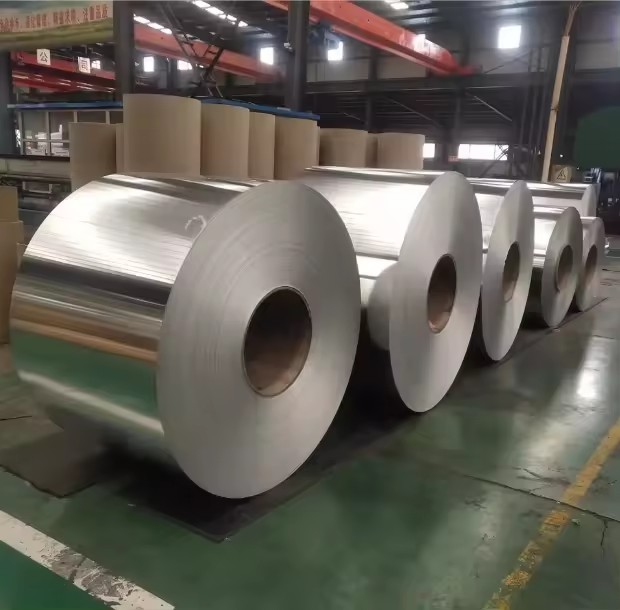

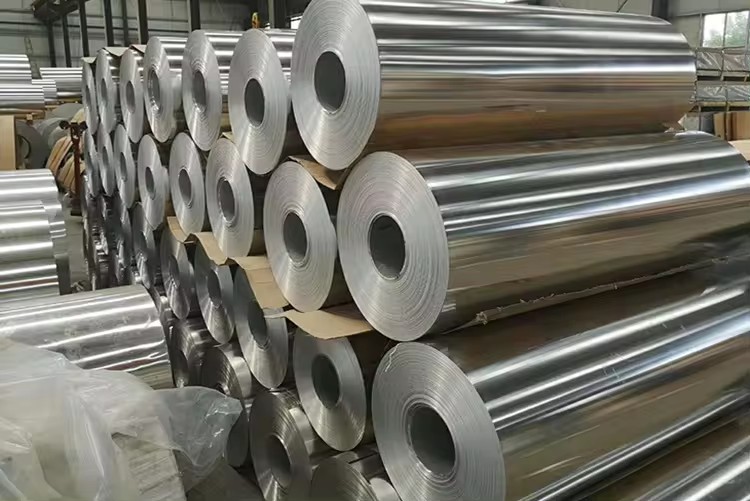

Aluminium steel coil
- Category： Aluminum coil
- Aluminum is widely used in electronics, packaging, construction, machinery, and so on. According to the chemical composition, it is divided into alloy aluminum and pure aluminum. According to the processing shape, it is divided into aluminum coil, aluminum plate, aluminum sheet, aluminum strip, aluminum tube, aluminum rod, aluminum profile and so on.
Aluminum steel coil
Product Description
|
Description |
Aluminium steel coil |
|||||||
|
Standard |
JIS G3141,DIN1623,EN10130 |
|||||||
|
Material |
1050,1060,3003, 3A21,5052.5005.5083.5A05,6061 |
|||||||
|
Thickness |
0.15 mm- 200mm |
|||||||
|
Width |
As requested ~ 2000mm |
|||||||
|
Packing |
Export standard packing or according to customers’ requirement |
|||||||
|
Certificate |
ISO9001:2008,SGS |
|||||||
|
Shipment |
Within10-15 workdays,25-30days when the quantity beyond 1000tons |
|||||||
|
Mechanical Property |
||||||||
|
ALUMINUM ALLOY |
Grade |
NormalTemper |
Temper |
Tensile StrengthN/mm |
Yield StrengthN/mm |
Elongation% |
Brinell HardnessHB |
|
|
Plate |
Bar |
|||||||
|
1XXX |
1050 |
O,H112,H |
O |
78 |
34 |
40 |
- |
20 |
|
1060 |
O,H112,H |
O |
70 |
30 |
43 |
- |
19 |
|
|
Al-Cu(2XXX) |
2019 |
O,T3,T4,T6,T8 |
T851 |
450 |
350 |
10 |
- |
- |
|
2024 |
O,T4 |
T4 |
470 |
325 |
20 |
17 |
120 |
|
|
Al-Mn(3XXX) |
3003 |
O,H112,H |
O |
110 |
40 |
30 |
37 |
28 |
|
3004 |
O,H112,H |
O |
180 |
70 |
20 |
22 |
45 |
|
|
Al-Si (4XXX) |
4032 |
O,T6,T62 |
T6 |
380 |
315 |
- |
9 |
120 |
|
Al-Mg(5XXX) |
5052 |
O,H112,H |
H34 |
260 |
215 |
10 |
12 |
68 |
|
5083 |
O,H112,H |
O |
290 |
145 |
- |
20 |
- |
|
|
Al-Mg-Si(6XXX) |
6061 |
O,T4,T6,T8 |
T6 |
310 |
275 |
12 |
15 |
95 |
|
6063 |
O,T1,T5,T6,T8 |
T5 |
185 |
145 |
12 |
- |
60 |
|
|
Al-Zn-Mg(7XXX) |
7003 |
T5 |
T5 |
315 |
255 |
15 |
- |
85 |
|
7075 |
O,T6 |
T6 |
570 |
505 |
11 |
9 |
150 |
|
Chemical composition
Alloy
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Others:Each
Others:Total
Al: Min.
1050
0.25
0.40
0.05
0.05
0.05
-
0.05
0.03
0.03
-
99.50
1060
0.25
0.35
0.05
0.03
0.03
-
0.05
0.03
0.03
-
99.60
1070
0.20
0.25
0.04
0.03
0.03
-
0.04
0.03
0.05
-
99.70
1100
0.95 Si + Fe
0.05~0.20
0.05
-
-
0.1
-
0.05
0.15
99.0
2014
0.5~1.2
0.7
3.9~5.0
0.4~1.2
0.2~0.8
0.10
0.25
0.15
0.05
0.15
margin
2017
0.2~0.8
0.7
3.5~4.5
0.4~1.0
0.4~0.8
0.10
0.25
0.15
0.05
0.15
91.5 - 95.5
2024
0.50
0.50
3.8~4.9
0.3~0.9
1.2~1.8
0.10
0.25
0.15
0.05
0.15
margin
3003
0.60
0.70
0.05~0.20
1.0~1.5
-
-
0.10
-
0.05
0.15
margin
3A21
0.60
0.70
0.20
1.0-1.6
0.05
-
0.15
0.1-0.2
-
-
margin
3004
0.30
0.70
0.25
1.0~1.5
0.8~1.3
-
0.25
-
0.05
0.15
margin
3005
0.60
0.70
0.30
1.0~1.5
0.2~0.6
0.10
0.25
0.10
0.05
0.15
margin
3105
0.60
0.70
0.30
0.3~0.8
0.2~0.8
0.20
0.40
0.10
0.05
0.15
margin
5005
0.30
0.70
0.20
0.20
0.5~1.1
0.1
0.25
-
0.05
0.15
margin
5052
0.25
0.40
0.10
0.10
2.2~2.8
0.15~0.35
0.10
-
0.05
0.15
margin
5754
0.40
0.40
0.10
0.50
2.6~3.6
0.30
0.20
0.15
0.05
0.15
margin
5A05
0.50
0.50
0.10
0.3-0.6
4.8-5.5
-
0.20
-
0.05
0.05
margin
5083
0.40
0.40
0.10
0.4~1.0
4.0~4.9
0.05~0.25
0.25
0.15
0.05
0.15
margin
6061
0.40~0.8
0.70
0.15~0.4
0.15
0.8~1.2
0.04~0.35
0.25
0.15
0.05
0.15
margin
6082
0.70~1.3
0.50
0.10
0.4~1.0
0.6~1.2
0.25
0.20
0.10
0.05
0.15
margin
7075
0.40
0.50
1.2~2.0
0.30
2.1~2.9
0.18~0.28
5.1~6.1
0.20
0.05
0.15
margin
Mechanical behavior
|
tensile strength (MPa) |
Test stress0.2% (MPa) |
HardnessHB |
Elongation（%） |
|
105-145 |
≥85 |
≥34 |
≥12 |
Physical properties
|
Density |
melting point |
Elastic Modulus |
Thermal conductivity |
Thermal expansion |
Resistivity |
|
2.71 Kg/m³ |
650 °C |
71 GPa |
222 W/m.K |
24×10-6 /K |
0.282×10 -6 Ω.m |
Annealing state
|
Trademark |
Annealing state |
|
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
|
3xxx: 3003, 3004, 3005, 3105 |
|
|
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
|
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
|
2xxx: 2024 |
T3, T351, T4 |
|
7xxx: 7075 |
T6, T651 |
Application scope
|
Aluminum uses and application areas |
|
|
Food packaging |
Beverage can ends, cans, bottle caps, etc. |
|
architecture |
Curtain walls, cladding, suspended ceilings, insulation, Venetian blinds etc. |
|
Transportation |
Auto parts, bus bodies, aviation ships and air cargo containers, etc. |
|
Electronic equipment |
Electrical appliances, communication equipment, PC board drilling guides, lighting and heat dissipation materials, etc. |
|
consumer goods |
Parasols, cooking utensils, sports equipment, etc. |
|
other |
Military, color-coated aluminum plate |
