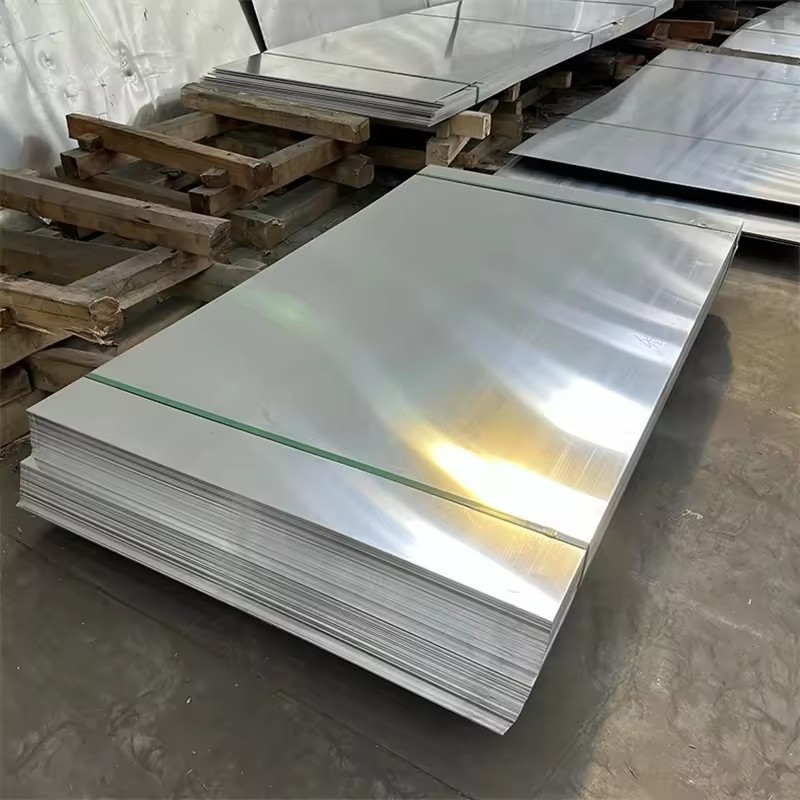

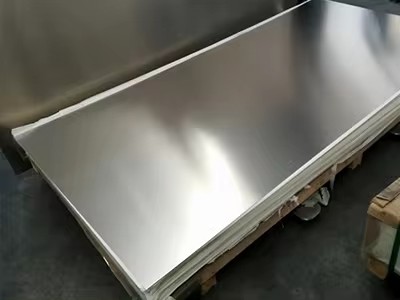

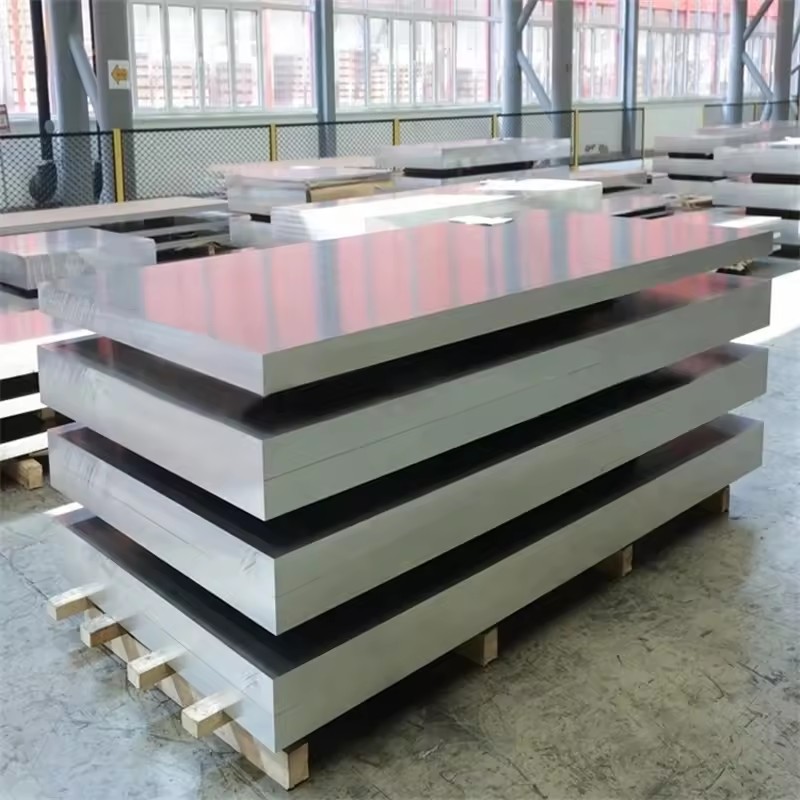

Aluminium steel sheet

Description

Aluminium steel sheet

Standard

JIS G3141,DIN1623,EN10130

Material

1050,1060,3003, 3A21,5052.5005.5083.5A05,6061

Thickness

0.15 mm- 200mm

Width

As requested ~ 2000mm

Length

As requested~11800mm

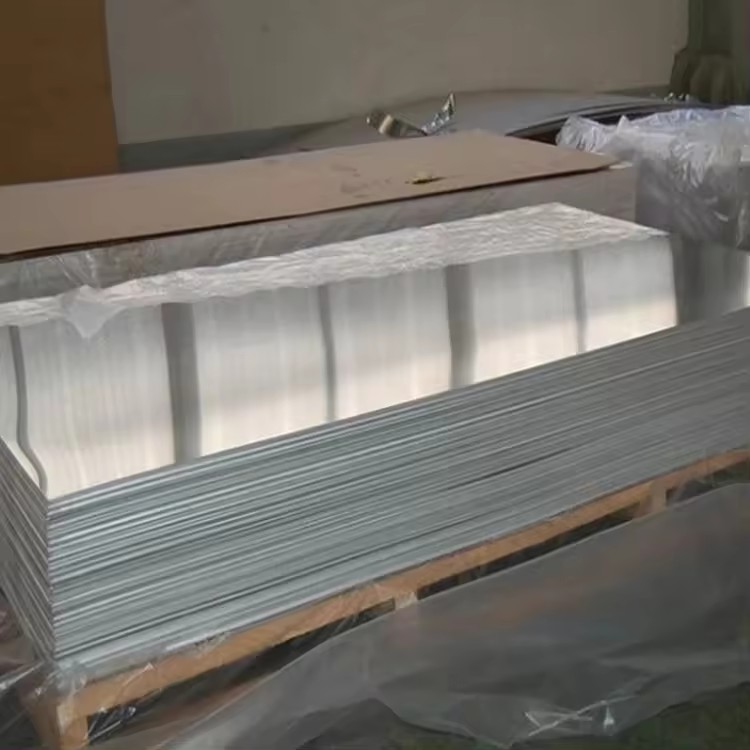

Packing

Export standard packing or according to customers’ requirement

Certificate

ISO9001:2008,SGS

Shipment

Within10-15 workdays,25-30days when the quantity beyond 1000tons

Mechanical Property

ALUMINUM ALLOY

Grade

NormalTemper

Temper

Tensile StrengthN/mm

Yield StrengthN/mm

Elongation%

Brinell HardnessHB

Plate

Bar

1XXX

1050

O,H112,H

O

78

34

40

-

20

1060

O,H112,H

O

70

30

43

-

19

Al-Cu(2XXX)

2019

O,T3,T4,T6,T8

T851

450

350

10

-

-

2024

O,T4

T4

470

325

20

17

120

Al-Mn(3XXX)

3003

O,H112,H

O

110

40

30

37

28

3004

O,H112,H

O

180

70

20

22

45

Al-Si (4XXX)

4032

O,T6,T62

T6

380

315

-

9

120

Al-Mg(5XXX)

5052

O,H112,H

H34

260

215

10

12

68

5083

O,H112,H

O

290

145

-

20

-

Al-Mg-Si(6XXX)

6061

O,T4,T6,T8

T6

310

275

12

15

95

6063

O,T1,T5,T6,T8

T5

185

145

12

-

60

Al-Zn-Mg(7XXX)

7003

T5

T5

315

255

15

-

85

7075

O,T6

T6

570

505

11

9

150

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others:Each

Others:Total

Al: Min.

1050

0.25

0.40

0.05

0.05

0.05

-

0.05

0.03

0.03

-

99.50

1060

0.25

0.35

0.05

0.03

0.03

-

0.05

0.03

0.03

-

99.60

1070

0.20

0.25

0.04

0.03

0.03

-

0.04

0.03

0.05

-

99.70

1100

0.95 Si + Fe

0.05~0.20

0.05

-

-

0.1

-

0.05

0.15

99.0

2014

0.5~1.2

0.7

3.9~5.0

0.4~1.2

0.2~0.8

0.10

0.25

0.15

0.05

0.15

margin

2017

0.2~0.8

0.7

3.5~4.5

0.4~1.0

0.4~0.8

0.10

0.25

0.15

0.05

0.15

91.5 - 95.5

2024

0.50

0.50

3.8~4.9

0.3~0.9

1.2~1.8

0.10

0.25

0.15

0.05

0.15

margin

3003

0.60

0.70

0.05~0.20

1.0~1.5

-

-

0.10

-

0.05

0.15

margin

3A21

0.60

0.70

0.20

1.0-1.6

0.05

-

0.15

0.1-0.2

-

-

margin

3004

0.30

0.70

0.25

1.0~1.5

0.8~1.3

-

0.25

-

0.05

0.15

margin

3005

0.60

0.70

0.30

1.0~1.5

0.2~0.6

0.10

0.25

0.10

0.05

0.15

margin

3105

0.60

0.70

0.30

0.3~0.8

0.2~0.8

0.20

0.40

0.10

0.05

0.15

margin

5005

0.30

0.70

0.20

0.20

0.5~1.1

0.1

0.25

-

0.05

0.15

margin

5052

0.25

0.40

0.10

0.10

2.2~2.8

0.15~0.35

0.10

-

0.05

0.15

margin

5754

0.40

0.40

0.10

0.50

2.6~3.6

0.30

0.20

0.15

0.05

0.15

margin

5A05

0.50

0.50

0.10

0.3-0.6

4.8-5.5

-

0.20

-

0.05

0.05

margin

5083

0.40

0.40

0.10

0.4~1.0

4.0~4.9

0.05~0.25

0.25

0.15

0.05

0.15

margin

6061

0.40~0.8

0.70

0.15~0.4

0.15

0.8~1.2

0.04~0.35

0.25

0.15

0.05

0.15

margin

6082

0.70~1.3

0.50

0.10

0.4~1.0

0.6~1.2

0.25

0.20

0.10

0.05

0.15

margin

7075

0.40

0.50

1.2~2.0

0.30

2.1~2.9

0.18~0.28

5.1~6.1

0.20

0.05

0.15

margin

tensile strength (MPa)

Test stress0.2% (MPa)

HardnessHB

Elongation（%）

105-145

≥85

≥34

≥12

Density

melting point

Elastic Modulus

Thermal conductivity

Thermal expansion

Resistivity

2.71 Kg/m³

650 °C

71 GPa

222 W/m.K

24×10-6 /K

0.282×10 -6 Ω.m

Trademark

Annealing state

1xxx: 1050, 1050A, 1060, 1100

O, H12, H14, H16, H18, H22, H24, H26, H28, H111

3xxx: 3003, 3004, 3005, 3105

5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454

O, H22, H24, H26, H28, H32, H34, H36, H38, H111

6xxx: 6061, 6082

T4, T6, T451, T651

2xxx: 2024

T3, T351, T4

7xxx: 7075

T6, T651

Aluminum uses and application areas

Food packaging

Beverage can ends, cans, bottle caps, etc.

architecture

Curtain walls, cladding, suspended ceilings, insulation, Venetian blinds etc.

Transportation

Auto parts, bus bodies, aviation ships and air cargo containers, etc.

Electronic equipment

Electrical appliances, communication equipment, PC board drilling guides, lighting and heat dissipation materials, etc.

consumer goods

Parasols, cooking utensils, sports equipment, etc.

other

Military, color-coated aluminum plate
